DMX - 512 Software
for your PC
Download the Prosurv DMX Installation and Quick Start

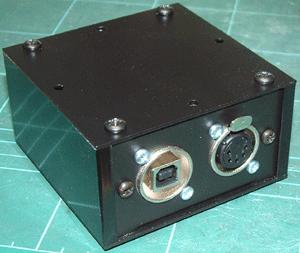

Requires the USB DMX
Interface (see the picture below). You can order the interface at
Runs virtually any DMX
Easy to learn, easy to use interface
5 identical 'Control Boxes'. Each control box
Select up to 5 different colors to create a color sequence
Checkmark each fixture in the list that you want to
display the color sequence
Set it to Loop and the sequence automatically starts
Set the Interval from 0.01 seconds up to 30 seconds
between each color!
Gradient feature changes from the current color to the
next color in single RGB steps for a cool effect

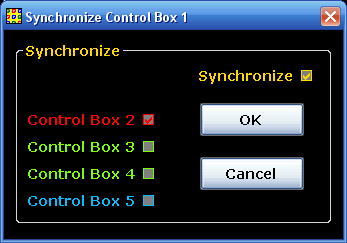

Synchronize any or all 5 control boxes
For example, you can set all your stage left
fixtures in one control box to go from Red to Blue. Then set
all the stage right fixtures in Control Box 2 to go from Blue to
Red. Synchronize 1 & 2 and then click Activate in Control Box
1 and you'll get Red-Blue-Red-Blue stage left, and Blue-Red-Blue-Red
stage right for a really neat effect!
Quick Set Control Box has two colors and two
buttons and will override anything else that's going on when Activated.
Let's say you want to blackout all but one light between songs.
Just select the fixtures that you want to assign (in the fixture list
box), and leave one unchecked. Set the color to Black and when
it's time, just hit the Set Color button. Click the button again
and it returns everything to how it was! Use the other color and
button combination to set everything to Blue or Red or any other color,
2 LASER controller boxes
Each one is designed to control 1 LASER fixture
(that's why we give you two) at a time. Just check the LASER
that you want to control, and the LASER PATTERN list for that LASER is
filled in. Then you can easily select any one of the patterns in
the list (such as Box or Rectangle).
There are 4 color check boxes, Red, Green, Yellow, and
Blue. If your LASER supports multi-color, like red, green, and
yellow, you can check any combination of colors and the LASER will
display the selected color(s).
You can quickly and easily set up an unlimited
sequence of patterns! Then hit the Start button and the sequence
The Auto Delay box lets you control the sequence two
different ways. If the Auto Delay is set to 0, you can control
the sequence manually by clicking Next.
Set the Auto Delay to any value other than 0 and the
sequence will step through the patterns using a timer. A value
of 5 means that each pattern will display for 5 seconds.
Gobo control box
Select the gobo fixture that you want to control
Quickly change gobo patterns by spinning the Gobo knob
Use the Color knob to quickly change colors
Focus slider lets you control the focus
Moving fixture box
Select the moving fixture that you want to control
Use the Pan, Tilt, and Speed sliders to control the
17 Individual Direct Channel Access Faders
Save every setting instantly to a file, just like
using a Document program!
Everything is saved to a file, including all of your
colors, check boxes, fixtures, intervals, sequences, synchronized
So if you do the same shows at different venues every
week, you simply Open the file for that show!
Built in Prosurv DMX Library is ever-expanding
Add to the Prosurv DMX Library yourself!

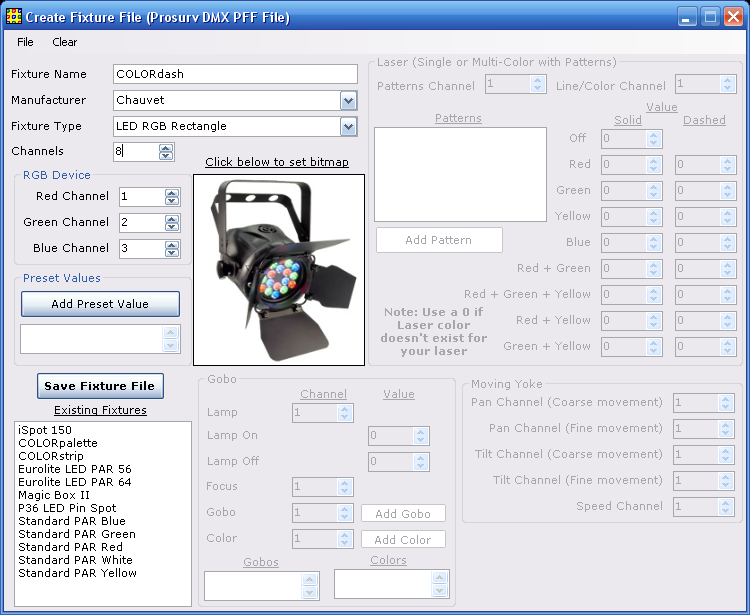

Built-in "Create Fixture File" window
Easy to use window lets you add RGB, LASER, GOBO, and
Moving Fixtures quickly and easily, based on the manufacturer's DMX
chart. Yes, with Prosurv DMX, you can add to the Library
whenever you need to!
Then, create your own PERSONAL FIXTURE LIBRARY by
selecting from the built in Prosurv DMX Library.

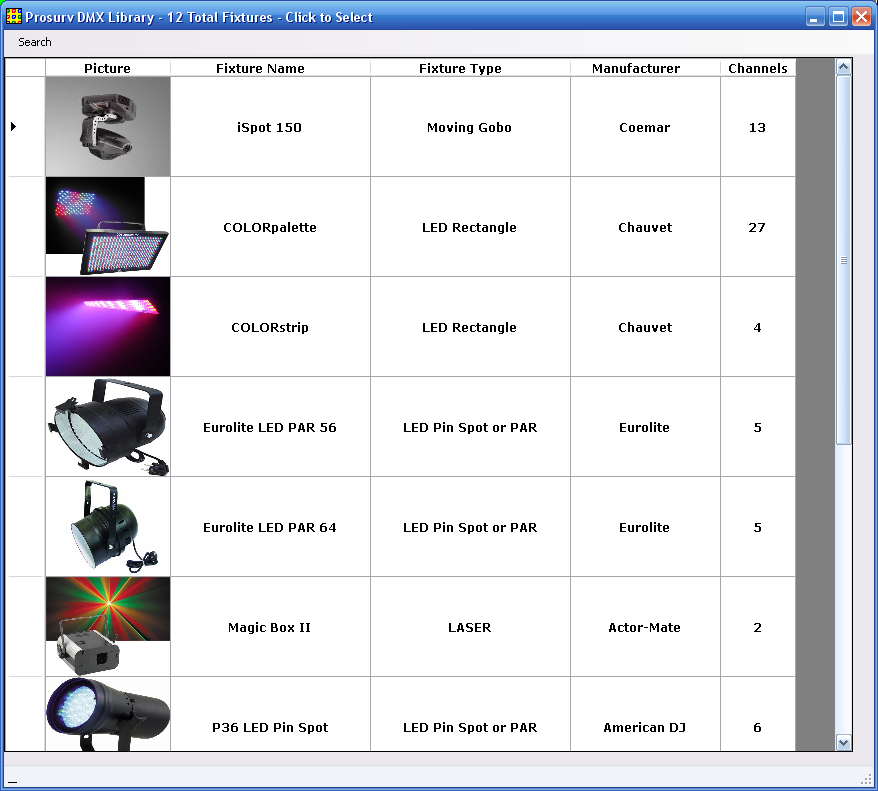

Easy to use spreadsheet-style presentation of known
Just click the row to add the fixture
Give the fixture a "UNIQUE" name. These names
are then shown in each Control Box, for easy identification!
For example, you could give them names like "Spot 1
Left" or "Palette 1 Center"
The DMX Starting Address for each fixture is
automatically computed for you! But of course, you can change
them now, or change them later using the View/Edit Personal Fixture
A picture of each fixture makes them easy to identify
Search for fixtures by fixture name or manufacturer
(there's a Find Next for each too)
Each Control Box shows a list of available fixtures.
These are the fixtures that you've selected to be in your Personal
Fixture Library. Each one shows the "unique" name and displays
the starting channel address for the fixture! So you can
instantly see your channel assignments!
Each on screen button (like Activate) has an "F" key
(Function key) assigned to it. So you can Activate control box
1 just by hitting F1 on your keyboard!
Color chase sequences are actually seen on the screen
in real-time (you can turn this off if you'd like)

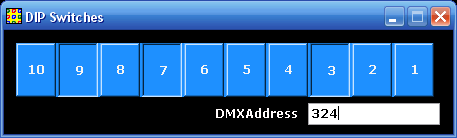

Handy DIP Switch window!

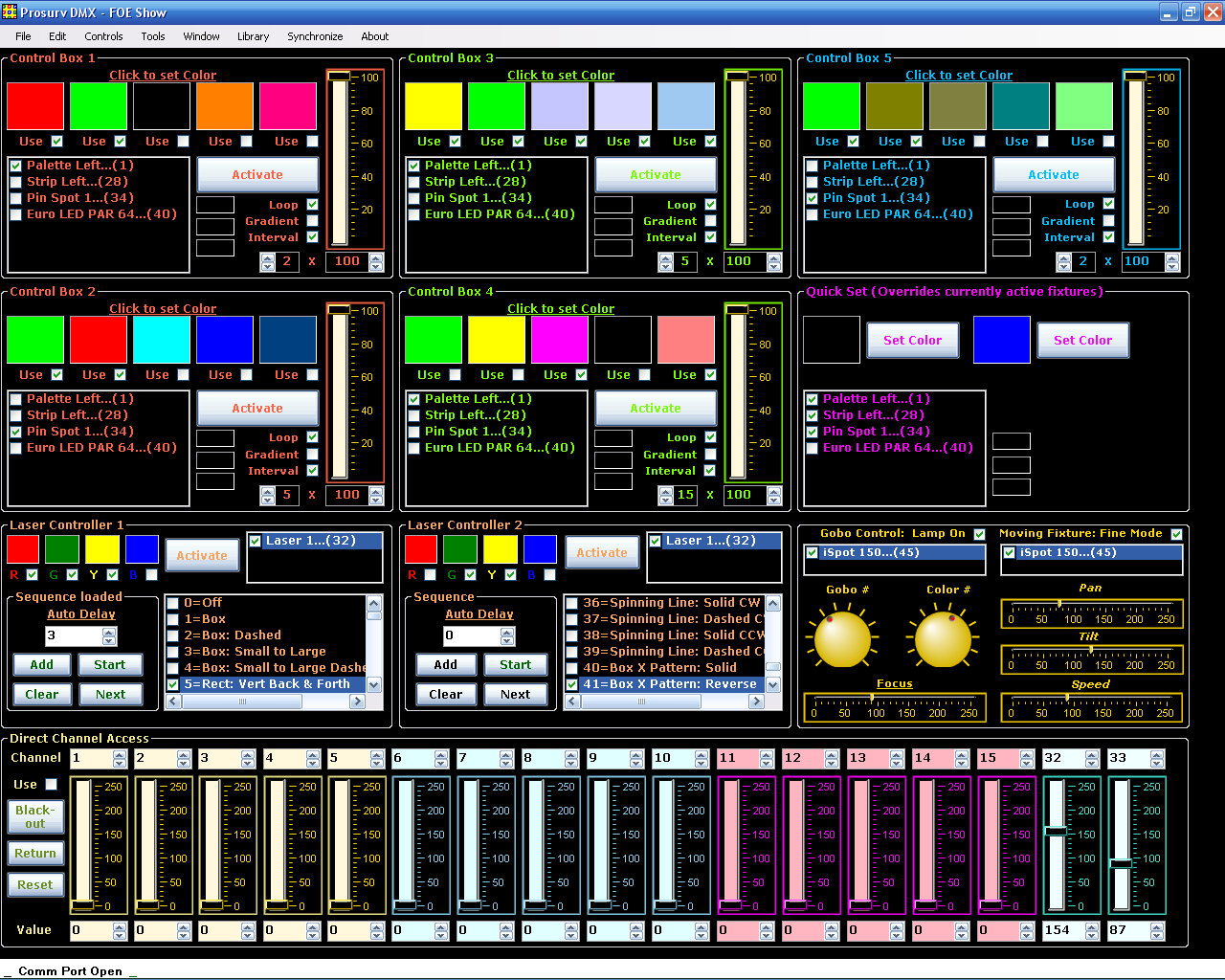

The Main Screen contains a total of 10 Boxes.
You can hide or show any of the 10 boxes at any time,
which allows you to easily customize the screen to fit your PC or
You can also MOVE any of the 10 boxes to any location
on the screen!
These settings are stored and remembered
automatically, so the next time you run Prosurv DMX, everything goes
back the way you like it!
